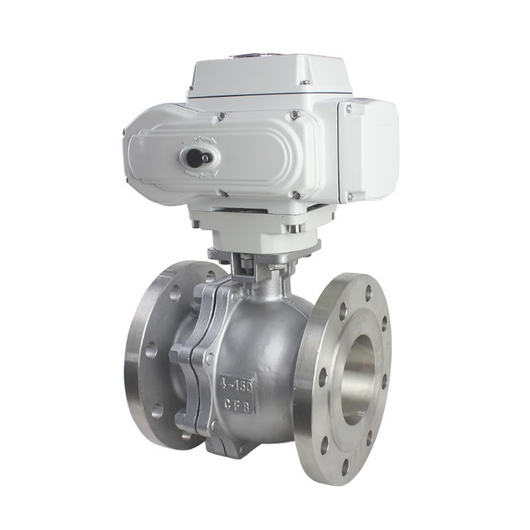

Link Click the link, to see an exemplary video of the valve and how to hook up and note response time for this example 1" FNPT Ball Valve. The same controller scheme is used for this 4" 150# ANSI Flange. The Controller is sized for the 4" Ball Valve.

Integrate with a PID controller to use the 4-20 mA Flow Signal and provide a setpoint to the PID Controller to attain the desired setpoint.

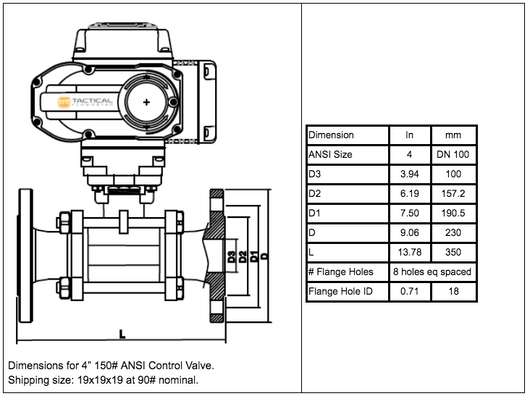

150# ANSI Size

4"

Maximum working pressure

1.6 MPA, 232 PSIG

Fluid medium

Fluid, air

Rated voltage

24 VDC 4 Amps max, 3.6 A running

control signal

4-20mA for off to full open, Programmable

Wiring control methods

2 wire control with feedback signal

Open/close time

≤ 10 Seconds

Valve Body material

304 SS

Actuator material

Cast Aluminum and 304 SS

Sealing material

FKM & PTFE

Actuator rotation

90°

Torque force

15NM / 133  in LBF

Environment temperature

-15℃ to 60℃

Liquid temperature

2℃ to 90℃

Manual override

Yes

Indicator

Yes

Enclosure Rating

IP67

Locked-rotor Current

3 A

Locked-rotor Delay Time

2-4s
